Which Schlage Connect lock do I have?

Schlage Connect locks powered by Zigbee (BE468GBAK) do not have a built-in alarm. You can verify if you have a Zigbee lock by checking the color of your lock's circuit board. Zigbee locks have a blue circuit board.

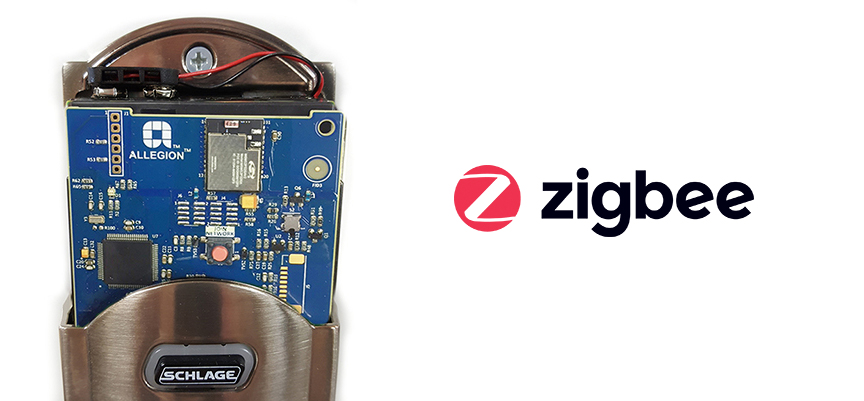

Schlage Connect Zigbee lock


Schlage Connect locks powered by Z-wave technology have a green circuit board. To check if your lock features Z-wave plus, look for the red enrollment button. Locks that do not have the enrollment button are powered by Z-wave.

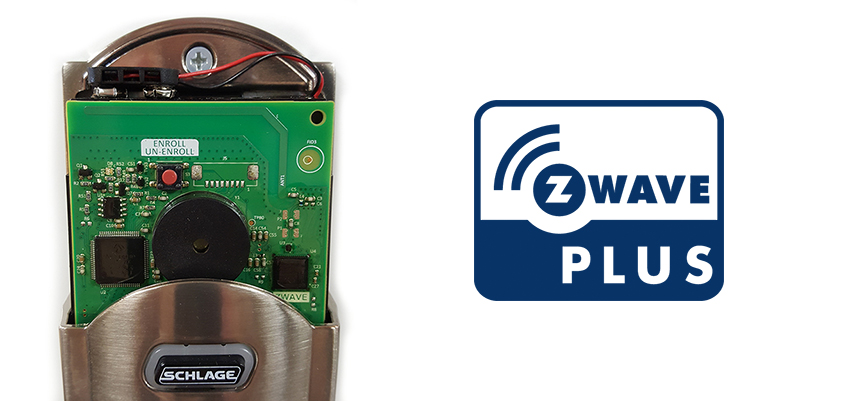

Schlage Connect Z-wave Plus lock
Schlage Connect Z-wave lock


To verify if your lock features a built-in alarm, look for the large black circle as pictured above. Notice that the Zigbee lock (blue circuit board) does not have the circle. BE468 (Z-wave) & BE468GBAK models of Schlage Connect do not have the built-in alarm.

For more help programming and using your Schlage Connect lock, visit the Schlage Connect FAQ page.
