What lever designs did Schlage offer on the A and H locks?

The Schlage A series (cylindrical lockset) and H series (interconnected lockset) were primarily knob locks, but they had a limited number of lever designs available.  Most of these lever designs were discontinued early on.  Only the Levon (LEV) lever remained an active design until both lock series were discontinued.

  • Bristol  (BRI)

  • Levon (LEV)

  • Ventura  (VEN)

  • Sonora   (SON)

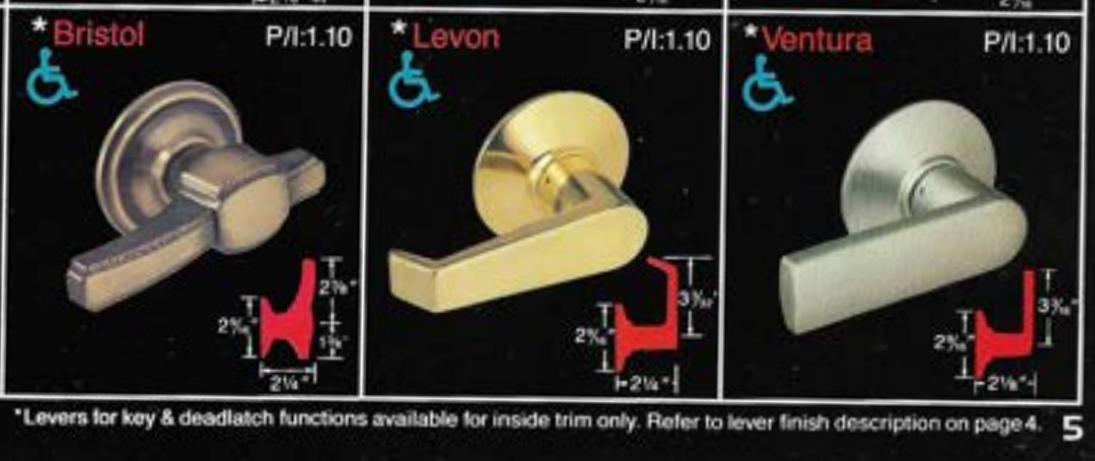

Click here for an image of the 1984 catalog showing the A series Bristol, Levon, and Ventura lever designs.

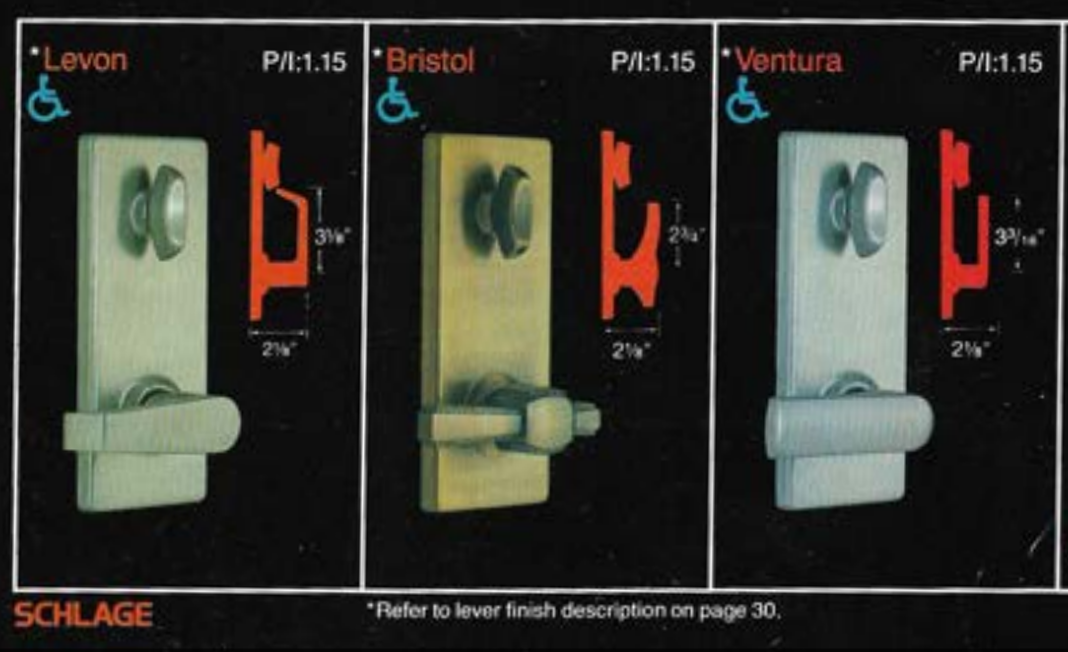

Click here for an image of the 1984 catalog showing the H series Bristol, Levon, and Ventura lever designs.

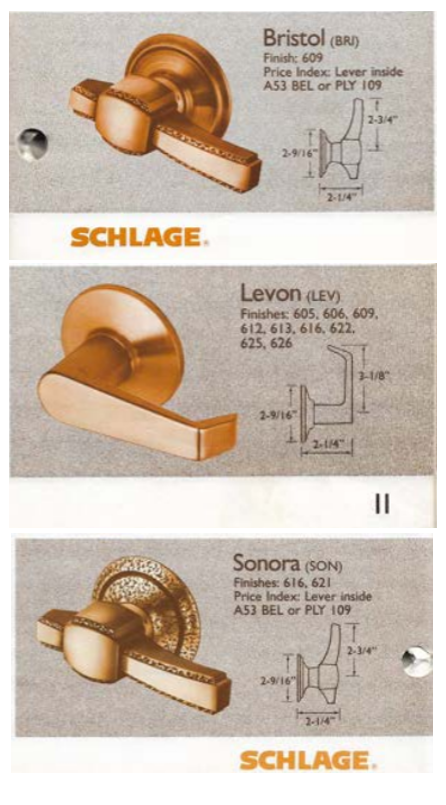

Click here for an image of the 1979 catalog showing the A series Bristol, Levon, and Sonora lever designs.

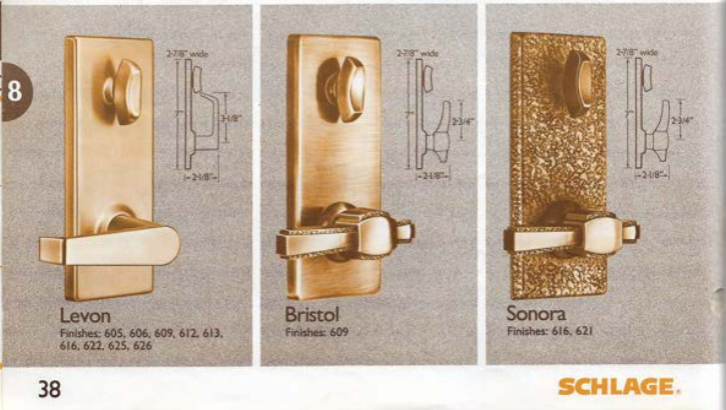

Click here for an image of the 1979 catalog showing the H series Bristol, Levon, and Sonora lever designs.
