Should I install the privacy pin above or below the knob/lever?

The choice is yours! You may install the lock so the privacy pin is located either above or below the knob/lever. Note the following considerations to help you decide:

Privacy Pin Below

  • Cleaner overall aesthetics
  • More common location

    Privacy Pin Above

    • Easy to see and locate by older children and adults
    • Easily access the privacy pin for operation
    • Less accessible to small children

      To install the privacy pin below the knob/lever, install the exterior chassis as shown:

      Then install the interior chassis:

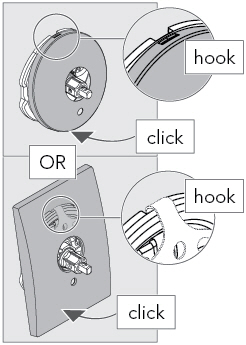

      Install the trim to match the chassis orientation:

      To install the privacy pin above the knob/lever, install the exterior chassis as shown:

      Then install the interior chassis:

      Install the trim to match the chassis orientation:
