How to wire the T851 or T881 for 12vdc or 24vdc.

The Falcon T series can be wired for either 12 vdc or 24 vdc, but the T series does not have the ability to autodetect voltage.



Falcon T series wiring for 12 vdc: The blue and red wire should be tied together and the white and black wire should be tied together. Each should then be connected to the power source as shown below.

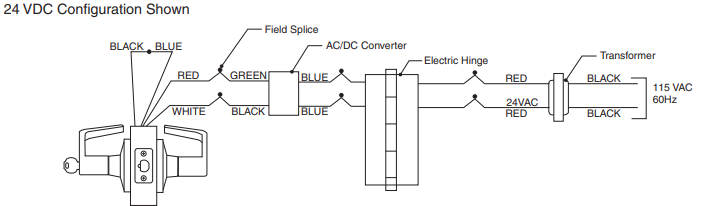

Falcon T series wiring for 24 vdc: The black and blue wire should be tied together. the Red and White leads should be connected to the power source as shown below.
