Does Schlage have a mortise coin turn cylinder?
The 09-487 is the Schlage coin turn cylinder. It does not come standard with any function and will need to be entered as a separate line item.
Specify 09-487 x length (118, 114, 138). This cylinder coin turn is non-handed so it can rotate freely in both directions.

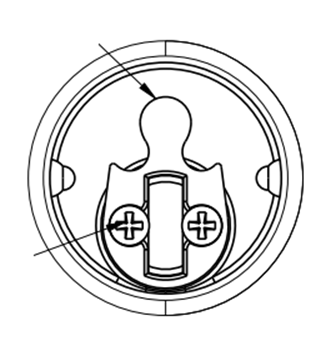

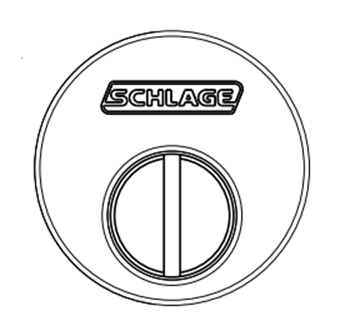

Here are the front face and back face engineering drawings for the 09-487.
Click here for additional pictures of the 09-487 coin turn cylinder.
